Bongshin BCH(1T-50T)压式称重传感器

【广州兰瑟电子】杨工提供Bongshin BCH(1T-50T)压式称重传感器奉信产品资料

韩国Bongshin BCH压式称重传感器，柱式结构设计，额定容量达到50t,优质合金钢材质，上下底部各四个安装螺纹孔安装设计，灵敏度1.0mV/VBCH。

量程：BCH-1t, BCH-2t, BCH-3t, BCH-5t, BCH-10t, BCH-20t, BCH-30t, BCH-50t

机床操作面板的显示屏上的显示器常会显示出当前输入位置的提示光标BCH。提示光标通常显示为闪烁的正方形或带下划线的字符。将在光标的当前位置输入程序。光标控制键（常是箭头的形式显示)使操作者能够将光标放置在显示屏幕上的理想位置。

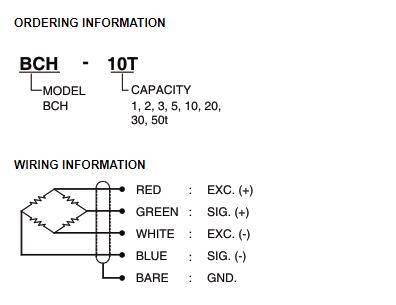

MODEL:BCH

Rated capacity (R.C.)

1, 2, 3, 5, 10, 20, 30, 50 t

Rated output(R.O.)

1.0mV/V ± 1.0%

Non-linearity

≤0.5% R.O.

Hysteresis

≤0.5% R.O.

Non-repeatability

≤0.5% R.O.

展开全文

Creep error

≤0.5% in 20min.

Zero balance

1% R.O.

Compensated temperature range

-10 ~ 70°C

Operating temperature range

-20 ~ 80°C

Temp. effect on rated output

±0.03% LOAD/10°C

Temp. effect on zero balance

±0.03% R.O./10°C

Terminal input resistance

350 Ohms ± 10 Ohms

Terminal output resistance

350 Ohms ± 10 Ohms

Insulation resistance (Min.)

2000 MOhms at 50V DC

Excitation voltage

10V(Recommended), 15V(Max.)

Electrial connection

Ø7mmx6m(22AWG x 4Core Shielded)

Protection class

meets IP 64

Safe overload

150% R.C

Ultimate overload

300% R.C
